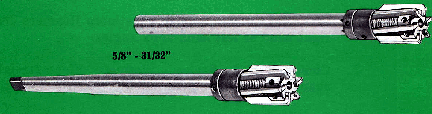

WETMORE - TYPE 36 & 36S CHUCKING REAMERS

     Furnished With Either High Speed Steel Or Carbide Tipped Blades

These adjustable reamers with left hand angle blades for right hand cutting are designed for the finish machining of steel, cast iron and brass. They have oversize adjustment to provide for wear and regrinding.

The 1/8" projection of the blades over the end of the reamer body allows for end cutting and lets the chips fall off ahead of the reamer, so they will not clog along cutting edge of blades.

Sizes of this type of reamer are 5/8" to 31/32" inclusive.

All chucking reamers are available in either standard or short (stub) lengths.

WETMORE short style reamers are best suited for reaming shallow holes...where space is limited between work and machine. They are especially adaptable for use in screw machines, drill presses and lathes.




TYPE
OF
REAMER


CUTTING RANGE


A

BLADES IN BODY &
THICK-
NESS

OVER
SIZE
ADJ.


DIA.
OF
SHANK

B
NO. OF
M.T.S.


C
36S


D
36


D
HEAD
LENGTH

E
DIST.
BTW.
BLADES
F




G

SIZE
OF T.C.T.

36-B-4
36S-B-4
.625-.687
.080
4
.035
13/32
No. 1
4 3/4
8
1 15/16
.255
1 1/8
1/32 x 1/8 x 3/4
36-C-6
36S-C-6
.718-.781
.080
6
.035
1/2
No. 1
4 3/4
8
1 15/16
.348
1 1/8
1/32 x 1/8 x 3/4
36-D-6
36S-D-6
.812-.875
.080
6
.035
19/32
No. 1
4 3/4
10
1 15/16
.442
1 1/8
1/32 x 1/8 x 3/4
36-E-6
36S-E-6
.906-.968
.080
6
.035
11/16
No. 2
5 1/4
10
1 15/16
.536
1 1/8
1/32 x 1/8 x 3/4
