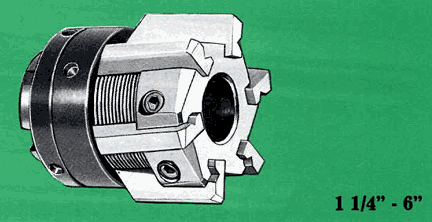

WETMORE - TYPE 7 SHELL REAMERS

Furnished With Either High Speed Steel Or Carbide Tipped Blades

These adjustable reamers with left hand angle blades for right hand cutting are designed for the finish machining of steel, cast iron and brass. Oversize adjustment is provided for wear and regrinding.

The 1/8" projection of the blades over the end of the reamer body allows for end cutting and lets the chips fall off ahead of the reamer, so they will not clog along cutting edge of blades.

Sizes of this type of reamer are 1 1/4" to 6" inclusive.


TYPE
OF
REAMER

SIZE
OF
REAMER

A
SIZE
HOLE
LARGE
END

B
LARGEST
SIZE
STRAIGHT
HOLE

C
LENGTH
OVERALL


D
WIDTH
LENGTH
KEYWAY

E F
DIST.
BETWEEN
BLADES

G
ADJ.
OVER
SIZE


BLADES
PER
REAMER &
THICK
NESS
DIM.
OF
CARBIDE
TIP
7-B-6
1.250 - 1.343
3/8
7/16
2 15/16
3/16
.832
.120
6
.120
1/32 X
3/16 X 3/4
7-C-6
1.357 - 1.593
1/2
9/16
2 15/16
1/4
.926
.120
6
.120
1/32 X
3/16 X 3/4
7-D-6
1.625 - 1.843
5/8
11/16
2 15/16
1/4
1.082
.120
6
.120
1/32 X
3/16 X 3/4
7-E-6
1.125 -
2.093
3/4
13/16
2 15/16
5/16
1.207
.130
6
.200
1/16 X
1/4 X 1
7-F-6
2.125 -
2.406
7/8
1
2 15/16
5/16
1.395
.130
6
.200
1/16 X
1/4 X 1
7-G-6
2.437 -
2.718
1
1 1/8
3 1/16
3/8
1.520
.130
6
.250
1/16 X
1/4 X 1
7-H-6
2.750 -
3.031
1 1/4
1 3/8
3 1/16
3/8
1.770
.130
6
.250
1/16 X
1/4 X 1
7-I-8
3.062 -
3.531
1 3/8
1 9/16
3 1/16
3/8
1.956
.130
8
.250
1/16 X
1/4 X 1
7-J-8
3.562 -
4.031
1 3/4
1 1/8
3 3/16
1/2
2.270
.130
8
.250
1/16 X
1/4 X 1
7-K-8
4.062 -
4.531
2
2 1/8
3 3/16
1/2
2.784
.230
10
.250
1/16 X
1/4 X 1
7-L-10
4.560 -
5.031
2 1/4
2 5/8
3 3/16
1/2
3.284
.230
10
.250
1/16 X
1/4 X 1
7-M-12
5.062 -
5.531
2 1/2
3 1/8
3 5/16
5/8
3.784
.230
12
.250
1/16 X
1/4 X 1
7-N-12
5.562 -
6.000
2 3/4
3 5/8
3 5/16
5/8
4.284
.230
12
.250
1/16 X
1/4 X 1
