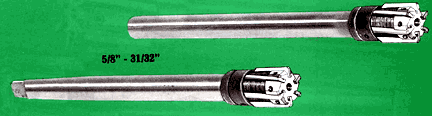

WETMORE - TYPE R36 & R36S CHUCKING REAMERS

Furnished With Either High Speed Steel Or Carbide Tipped Blades

These adjustable reamers with right hand angle blades for right hand cutting are designed for machining steel tubing, aluminum, soft stringy materials and roughing steel forgings. They have oversize adjustment to provide for wear and regrinding.

The 1/8" projection of blades over the end of the reamer body plus ample chip-clearance allows this type of reamer to be used satisfactorily on the recommended materials.

Sizes of this type of reamer are 5/8" to 31/32" inclusive.

All chucking reamers are available in either standard or short (stub) lengths.

WETMORE short style reamers are best suited for reaming shallow holes...where space is limited between work and machine. They are especially adaptable for use in screw machines, drill presses and lathes.




TYPE
OF
REAMER


CUTTING RANGE


A

BLADES IN BODY &
THICK-
NESS

OVER
SIZE
ADJ.


DIA.
OF
SHANK

B
NO. OF
M.T.S.


C
R36S


D
R36


D
HEAD
LENGTH


E
DIST.
BTW.
BLADES

F




G

SIZE
OF
T.C.T.
R36-B-4
R36S-B-4
.625-.687
.080
4
.035
13/32
No. 1
4 3/4
8
1 15/16
.221
1 1/8
1/32 x 1/8 x 3/4
R36-C-6
R36S-C-6
.718-.781
.080
6
.035
1/2
No. 1
4 3/4
8
1 15/16
.285
1 1/8
1/32 x 1/8 x 3/4
R36-D-6
R36S-D-6
.812-.875
.080
6
.035
19/32
No. 1
4 3/4
10
1 15/16
.364
1 1/8
1/32 x 1/8 x 3/4
R36-E-6
R36S-E-6
.906-.968
.080
6
.035
11/16
No. 2
5 1/4
10
1 15/16
.456
1 1/8
1/32 x 1/8 x 3/4
